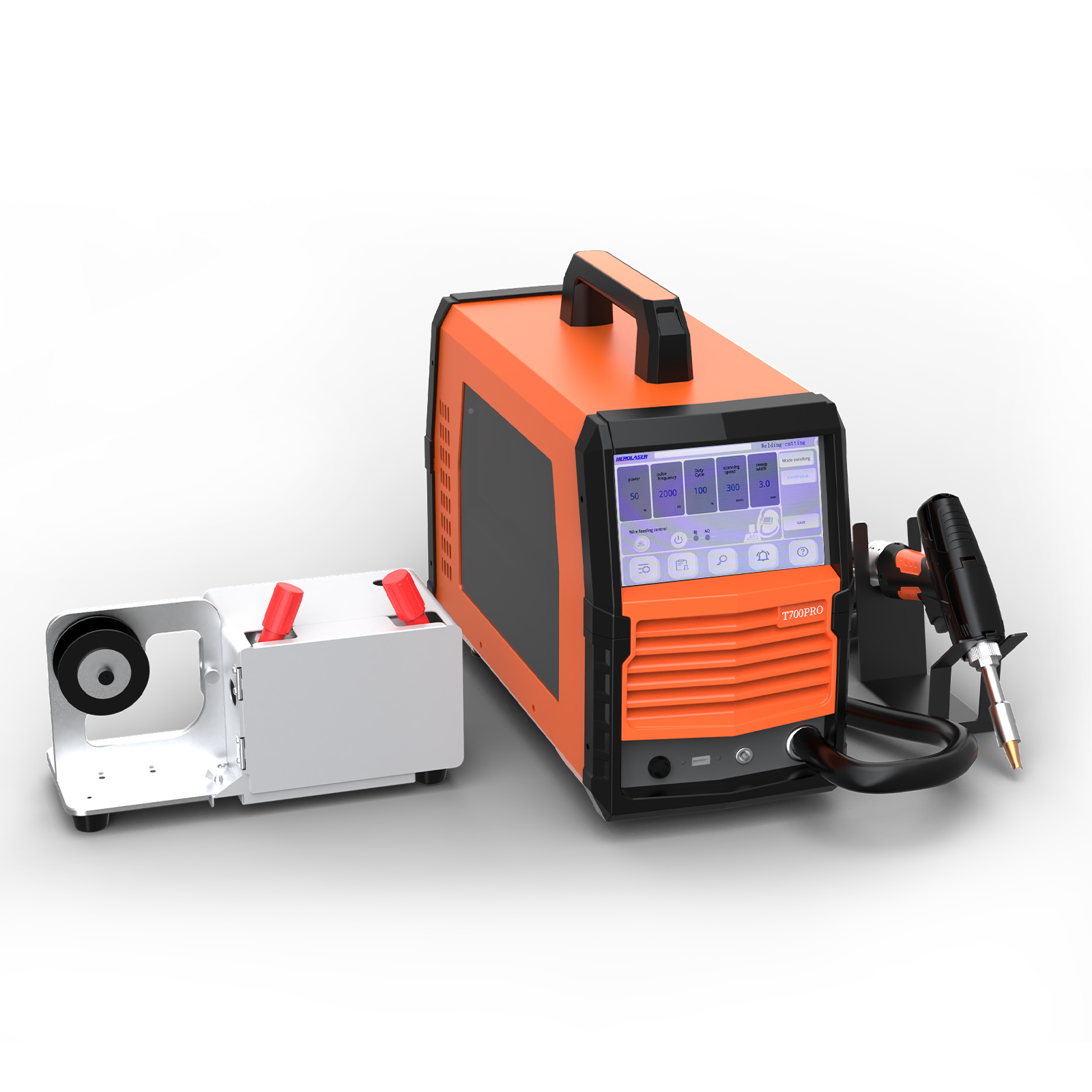

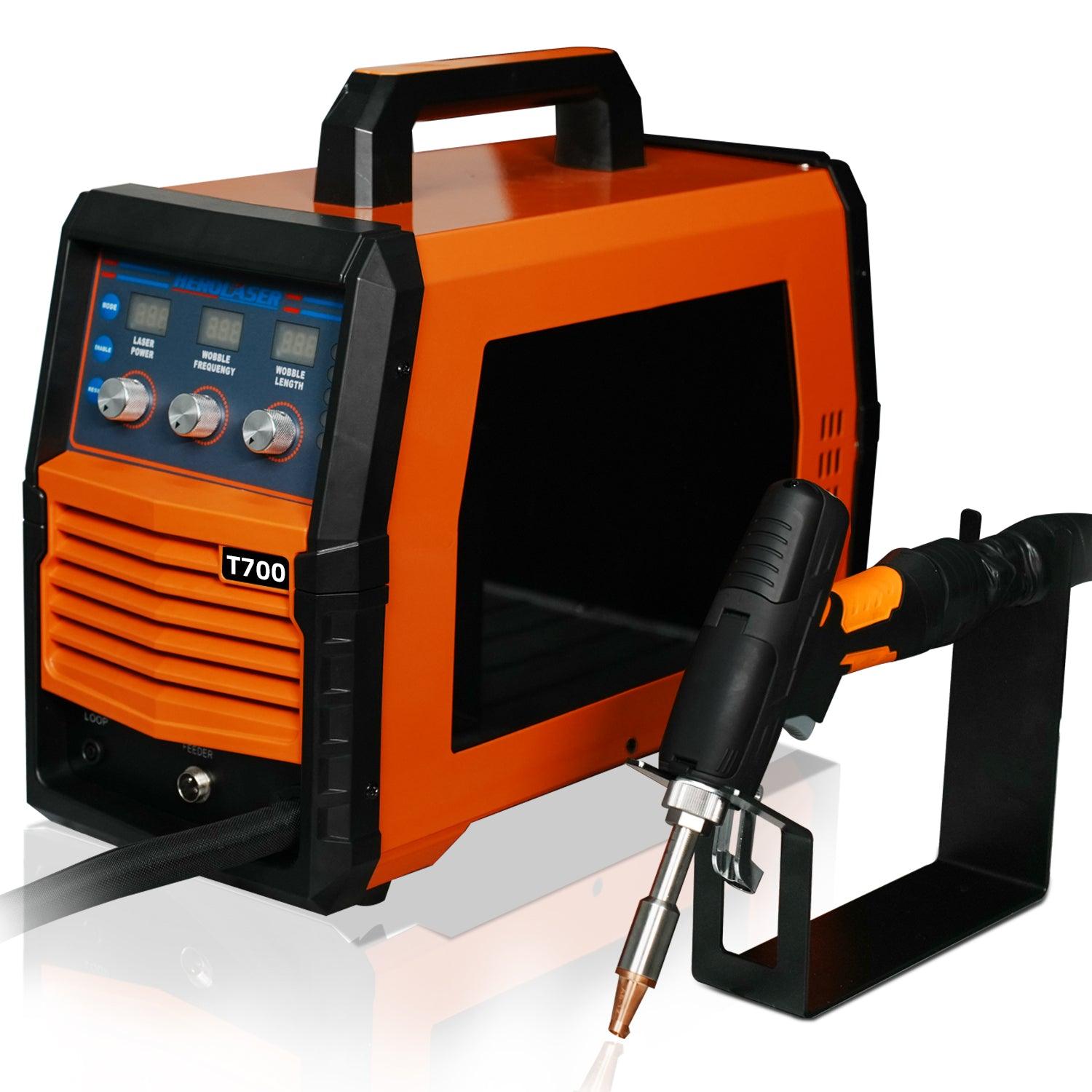

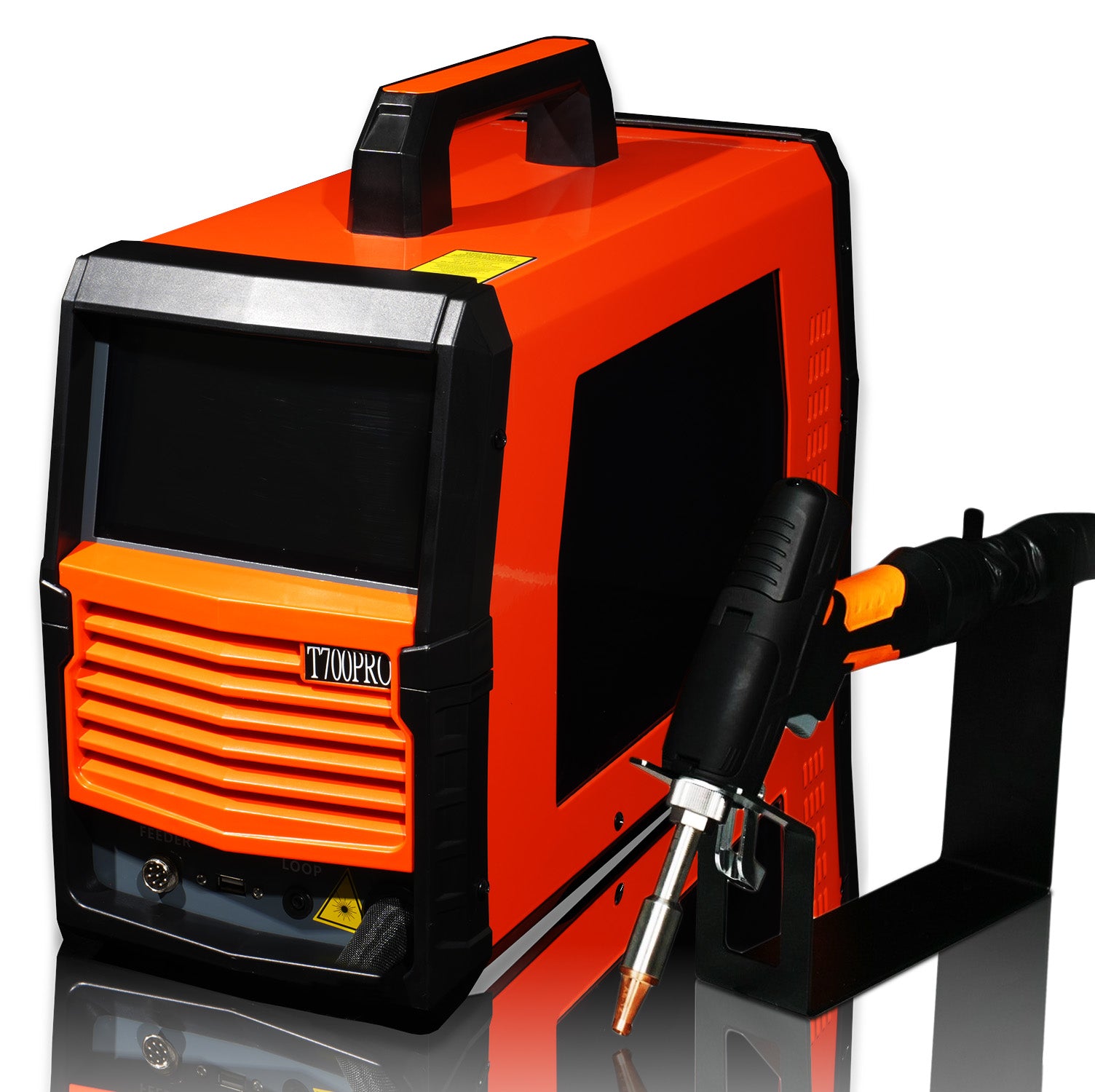

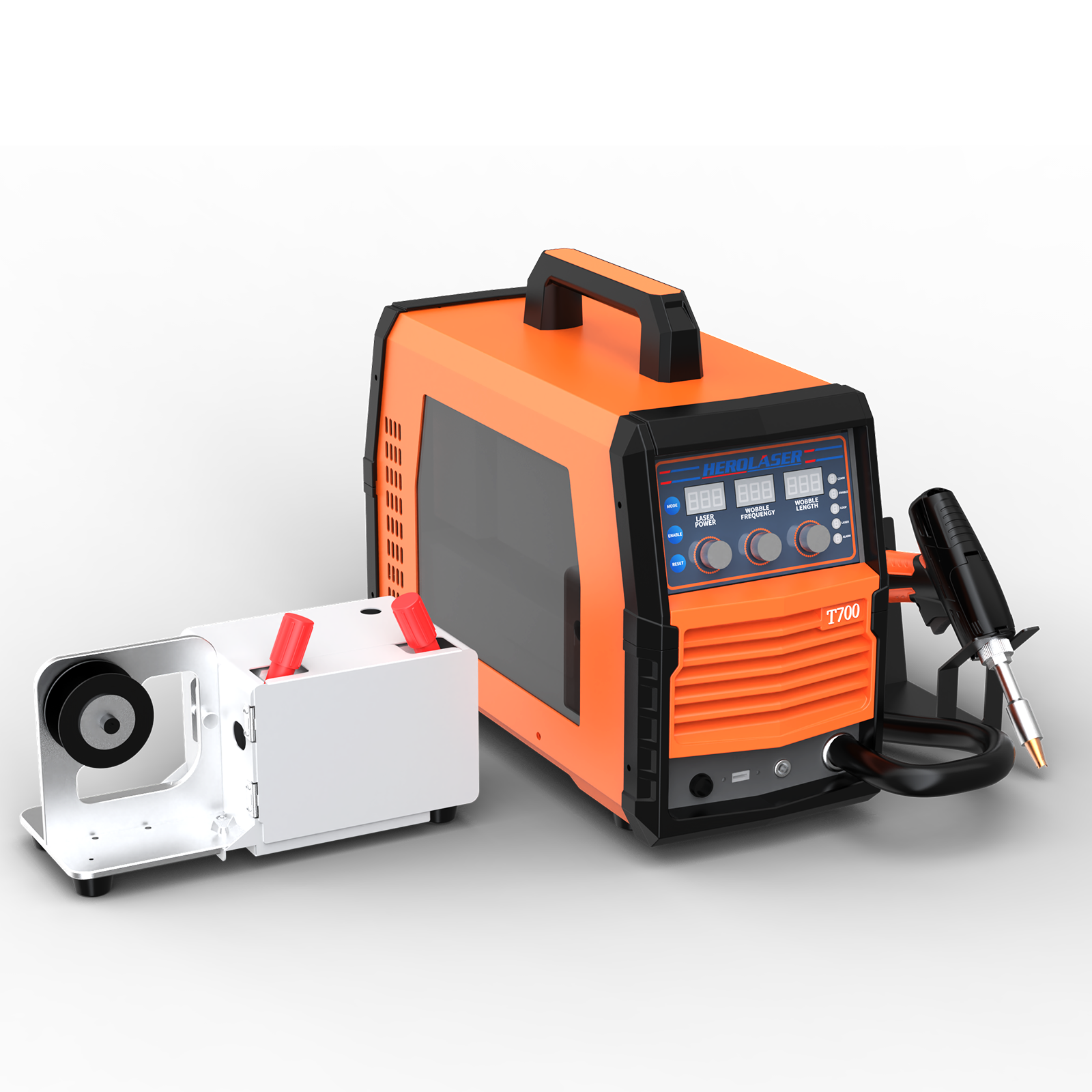

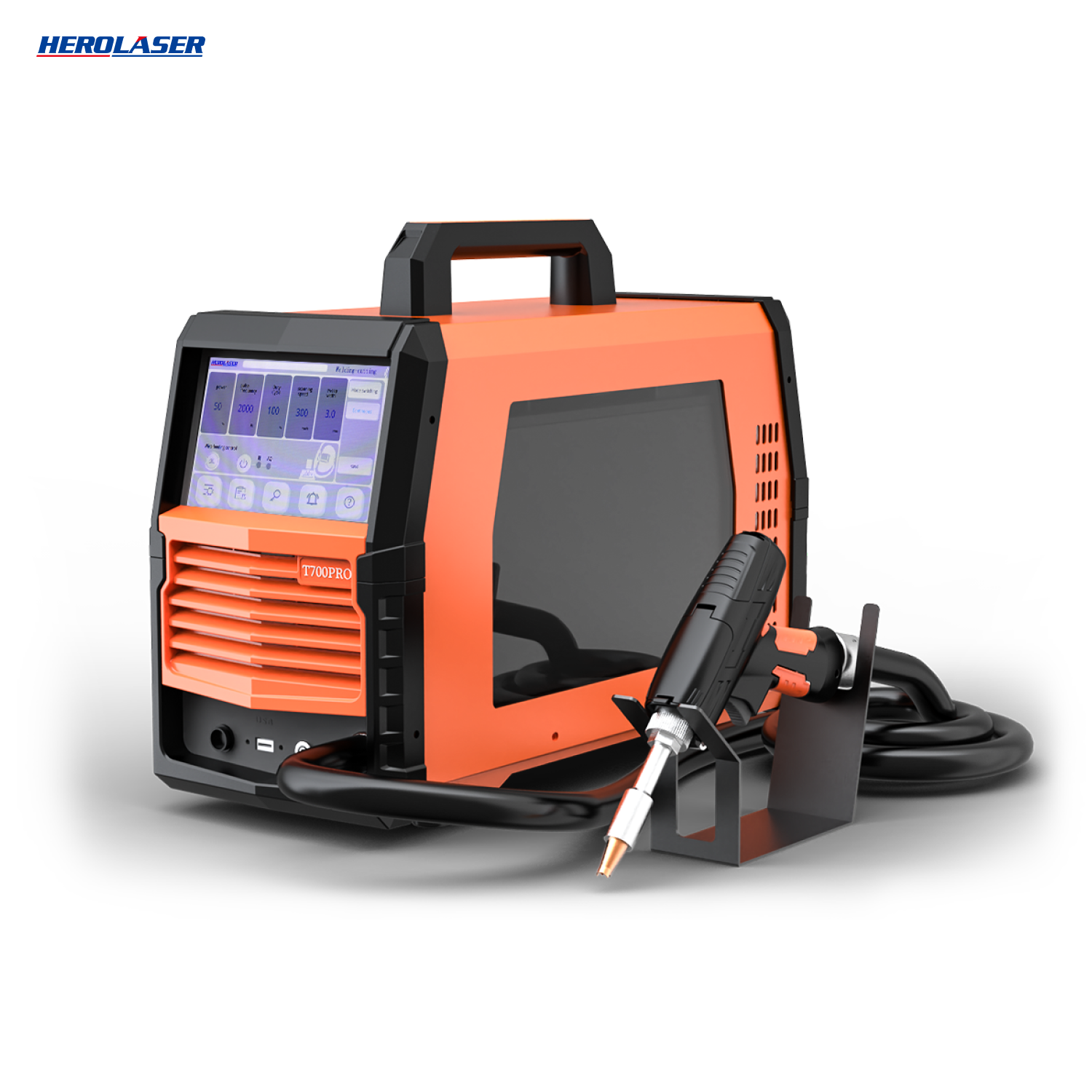

T1 Series
Machine comparison
Useful information that will help you decide the best machine yourself and your business
Viewing
Product
Viewing
Product
Power
300W
700W
700W
Cleaning Range
5mm wide
5mm wide
100mm wide
Weight
13kg
18kg
18kg
Cooling Method
Air Cooling
Air Cooling
Air Cooling
Laser Type
Fiber Laser
Fiber Laser
Fiber Laser
Working Mode
CW / Modulation
CW / Modulation
CW / Modulation
Operation Mode
Ailaser App + Button
Ailaser App + Button
Ailaser App + Button
Laser Wavelength
1080nm
1080nm
1080nm
Welding Capacity
Stainless Steel 2mm(0.078")
Carbon Steel 2mm(0.078")
Galvanized Sheet 1mm(0.039")
Aluminum 1mm(0.039")
Stainless Steel 4mm(0.157")Carbon Steel 4mm(0.157")Galvanized Sheet 2mm(0.078")Aluminum 2mm(0.078")
Stainless Steel 4mm(0.157")Carbon Steel 4mm(0.157")Galvanized Sheet 2mm(0.078")Aluminum 2mm(0.078")
Gas
Ar/N2
Ar/N2
Ar/N2
Used with Wire
0.8mm or Below
1.0mm or Below
1.0mm or Below
Output Cable Length
5M or Customized
5M or Customized
5M or Customized
Dimension
366x213x372mm
467x213x380mm
467x213x380mm

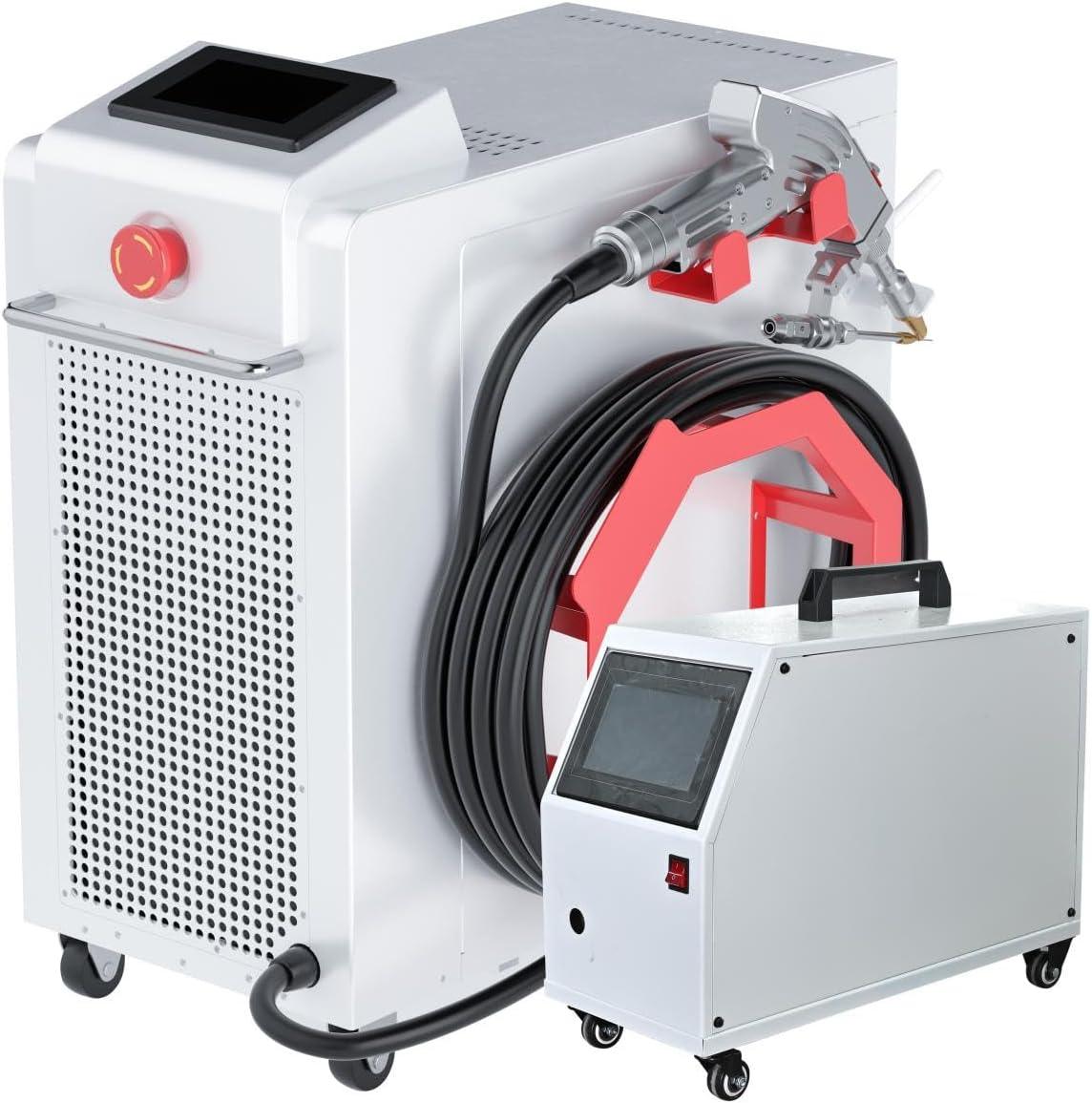

E-Series
Machine comparison
Laser Power
1000W
1500W
2000W
Wave Length
1070NM±10NM
1070NM±10NM
1070NM±10NM
Optical Fiber Length
Standard configuration of 5 m or a customized length
Standard configuration of 5m or a customized length
Standard configuration of 5 m or a customized length
Working mode
Continous/Modulation
Continous/Modulation
Continous/Modulation
Welding machine speed range
0~25mm/S
0~25mm/S
0~25mm/S
Operating ambient humidity
-15~40°C
-15~40°C
-15~40°C
Recommended welding thickness
<80% non-condensing
<80%non-condensing
<80% Non-condesing
Weld seam requirement
≤4mm
<6mm
≤10mm
Operation voltage
≤20% of board thickness
<20% of board thickness
≤20% of board thickness
Dimension
AC220V 50Hz
AC220V 50Hz
AC220V 50Hz
Weight
580*340*530mm
600*340*580mm
700*370*760mm
